51 45 370 Removing and installing (replacing) left decorative strip on dashboard

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove SIDE PANEL ON DASHBOARD , left

Release screw (1).

Lever out clamps on decorative strip in marked area with special tool 00 9 325 .

Unlock plug connection and disconnect.

Remove decorative strip with ventilation grille.

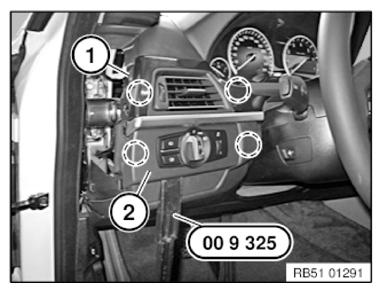

Fig 1: Removing Decorative Strip With Ventilation Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clamps are correctly fitted on decorative strip (1).

Replace defective clamps.

Replacement:

Modify LIGHT OPERATING FACILITY .
Modify LEFT FRESH AIR GRILLE

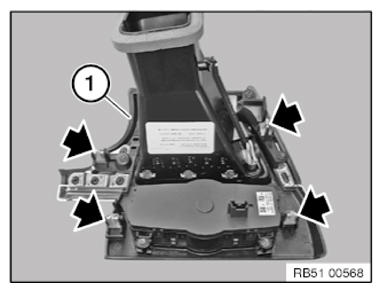

Fig 2: Identifying Clamps On Decorative Strip
Courtesy of BMW OF NORTH AMERICA, INC.
