61 31 037 Removing and installing/replacing light operating facility

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove DECORATIVE STRIP ON DASHBOARD ON LEFT

Removal:

Release all screws (1) and detach light operating facility (2) from left decorative strip (3).

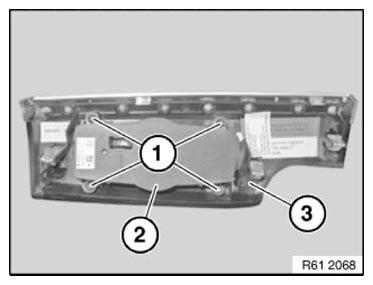

Fig 1: Identifying Light Operating Facility Screws And Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join light operating facility (2) to left decorative strip (3).

Tighten all screws (1).

Fig 2: Identifying Light Operating Facility Screws And Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install DECORATIVE STRIP ON INSTRUMENT PANEL AT LEFT
