51 47 140 Removing and installing/replacing panel for luggage compartment partition wall

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Version with ski bag:

Lift out and remove cover (1) with special tool 00 9 317 .

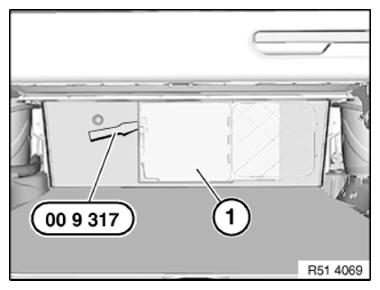

Fig 1: Removing Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clips (1) and remove trim panel (2).

Installation note:

If necessary, replace faulty clip (1).

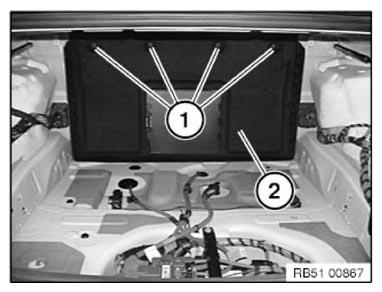

Fig 2: Identifying Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.
