52 14 110 Replacing left lumbar support

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See REMOVING DRIVER'S SEAT or REMOVING FRONT PASSENGER SEAT .
Partially remove backrest cover from front seat backrest. Partially remove backrest cover. See BACKREST COVER FOR DRIVER'S SEAT or BACKREST COVER FOR FRONT PASSENGER SEAT .

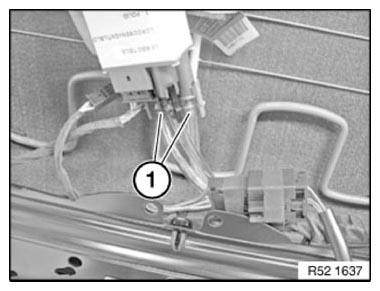

Unlock quick connectors and detach air hoses (1).

Valve unit for lumbar support:

Hoses (blue/red), lumbar support

Installation note:

Connections are coded against incorrect assembly.

Fig 1: Identifying Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

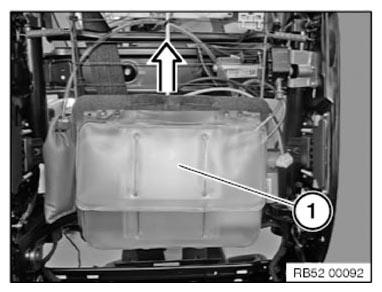

Detach lumbar support (1) upward from spring wire.

Installation note:

Attach lumbar support cushion (1) over first and fifth wires.

Fig 2: Detaching Lumbar Support From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

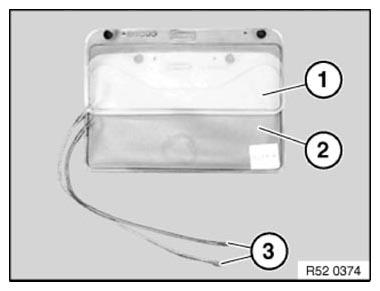

Check lumbar support at top (1) and bottom (2) for damage.

Air hoses (3) must be laid without kinks.

Fig 3: Identifying Lumbar Cushion Top/Bottom Sections And Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK .
