52 14... Performing function check with adapter cable (for seat repairs)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Seat function check:

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 150 .

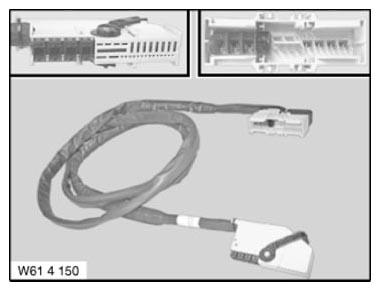

Fig 1: Identifying Adapter Cable (61 4 150)

Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 150 .

RSE (rear passenger compartment monitor) function check

NOTE: The function check of the RSE (rear passenger compartment monitor) on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 140 .

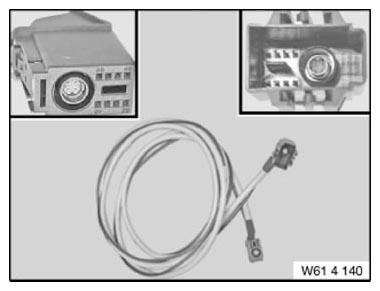

Fig 2: Identifying Adapter Cable (61 4 140)

Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 140 .
