52 17... Removing and installing/replacing adjustment unit for thigh support (electric) on front seat
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove THIGH SUPPORT
- Remove ELECTRIC MOTOR FOR THIGH SUPPORT
Release screw connection (1).

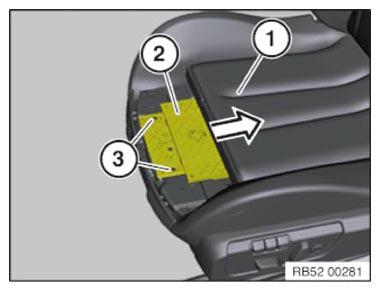

Slightly raise seat cover (1) in center.
Push out carriage (2) in direction of arrow.
Release screws (3).
Remove adjustment unit.
