67 31 560 Removing and installing/replacing drive unit for thigh support

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Release sheet metal nuts at marked points.

Unfasten plug connection (2) and disconnect.

Remove electric motor with gearbox (1).

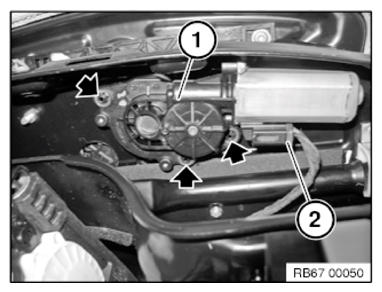

Fig 1: Identifying Plug Connection And Sheet Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE

Replacement:

INITIALIZE electric motor for thigh support.
