52 17... Removing or installing thigh support at the front seat (Comfort) on the left or right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Move thigh support (1) all the way forward.

Lever out welt (2) of seat cover (3) from thigh support (1).

Fig 1: Removing Seat Cover Welt From Thigh Support
G10063655Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

NOTE: If necessary, disconnect related plug connections.

Remove thigh support (2) towards top.

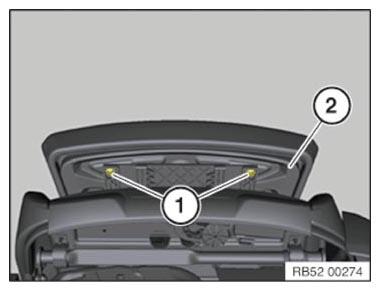

Fig 2: Identifying Thigh Support And Screws
G10063656Courtesy of BMW OF NORTH AMERICA, INC.
