52 17 408 Replacing backrest cover for front passenger seat (Comfort)

Special tools required:

• 52 0 050

Necessary preliminary work:

• Remove FRONT PASSENGER SEAT
• Remove SEAT SIDE AIRBAG
• Remove REAR PANEL

Unclip cover in direction of arrow.

Installation note:

Remove metal clamps (1) left and right on the cover.

Bend up metal clamps and insert back into the cover.

Clip metal clamps (1) with cover into the slot on the seat mechanism.

Guide lug must not be broken.

Renew faulty cover if necessary.

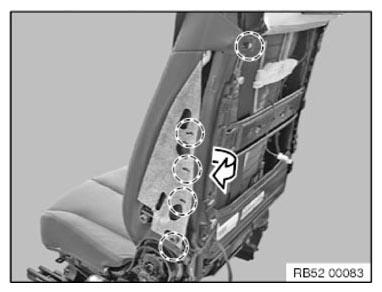

Fig 1: Identifying Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Detach tensioning straps on backrest frame from metal tabs.

Release clamps on spring wire.

Installation note:

Make sure tensioning straps are positioned correctly!

Remove all remnants of clamps from backrest cover and upholstery.

Bend new clamps to shape with special tool 52 0 050 .

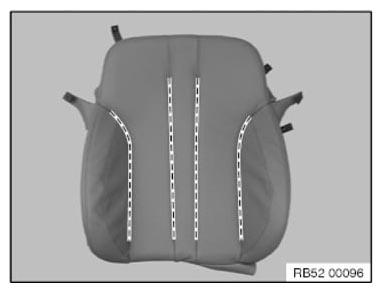

Fig 2: Locating Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover from metal retainer.

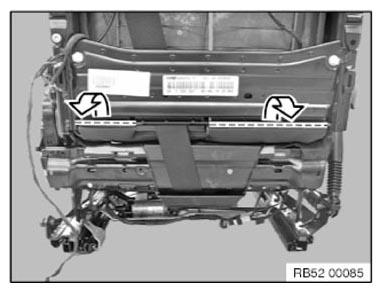

Fig 3: Detaching Backrest Cover From Metal Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover from metal retainer.

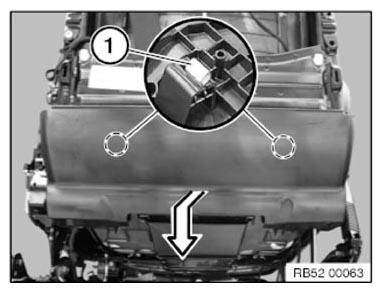

Fig 4: Detaching Backrest Cover From Metal Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lower section of welt from backrest frame.

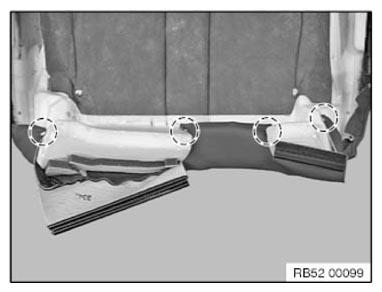

Fig 5: Detaching Lower Section Of Welt From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) for seat heating and disconnect.

Feed out cable from seat mechanism.

Remove backrest cover upwards.

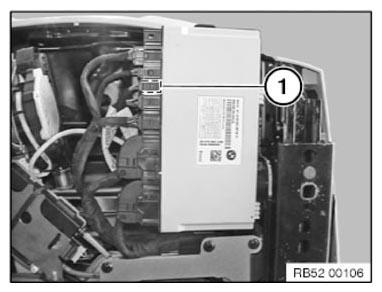

Fig 6: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

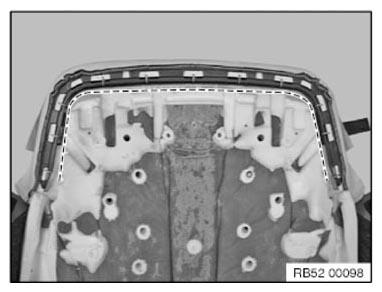

Release all clamps in marked area.

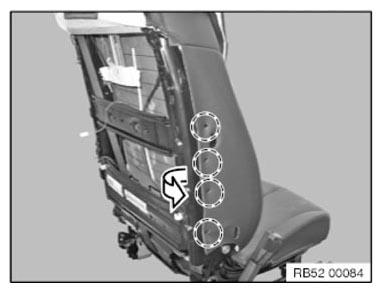

Fig 7: Locating Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked area.

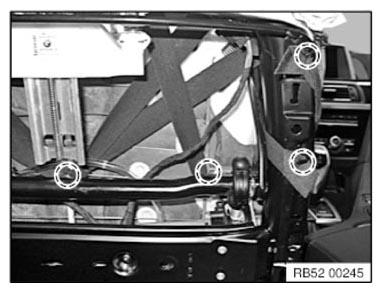

Fig 8: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked area.

Remove backrest cover from padding.

Fig 9: Locating Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If necessary, pull trim wires out of backrest cover.

Cut new backrest cover to size and insert trim wires.

Installation note:

Bend new clamp (2) with special tool 52 0 050 .

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in backrest cover
5. Backrest cover

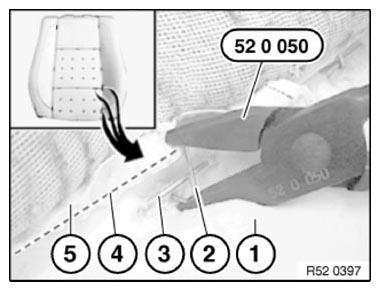

   Fig 10: Bending New Clamp With Special Tool (52 0 050)
