52 17 198 Removing and installing/replacing rear panel on left or right front seat backrest (comfort)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER AT THE INNER BACKREST
Remove COVER FOR BELT DEFLECTOR

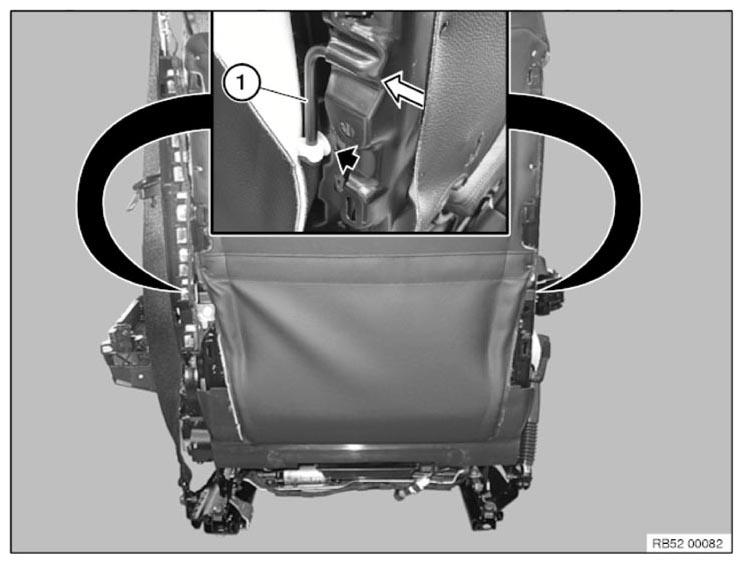

Fig 1: Identifying Soft-Top Bow And Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip soft-top bow (1) on left and right and detach from backrest frame.

Detach backrest cover on left and right from metal retainer.

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST

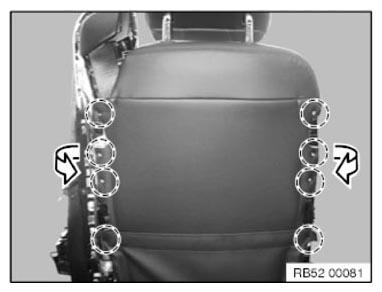

Fig 2: Detaching Backrest Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover tabs from backrest cover on left and right.

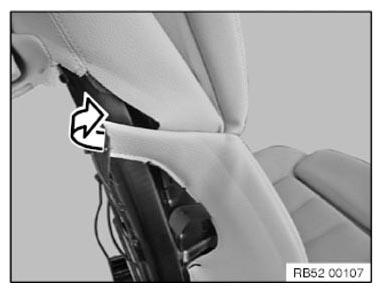

Fig 3: Detaching Cover Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Remove rear panel towards top.

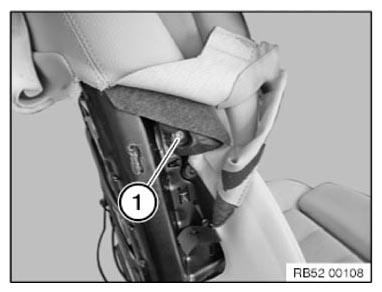

Fig 4: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.
