52 17 132 Replacing lumbar support set on right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat cover with upholstery. See REPLACING SEAT COVER FOR DRIVER'S SEAT or REPLACING SEAT COVER FOR PASSENGER FRONT SEAT .
Partially remove backrest cover. See REPLACING BACKREST COVER FOR DRIVER'S SEAT or REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT .

NOTE: Pressure distributor and pneumatic pockets form a single unit and can only be replaced as a single component.

Lever out clips (2).

Thread out valve holder (1).

Installation note:

Replace faulty clips.

Fig 1: Identifying Holder And Clips

G10047593

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Open quick connectors (2) and remove pressure lines.

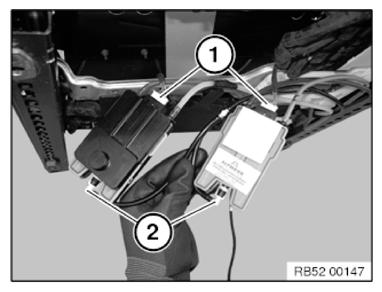

Fig 2: Identifying Plug Connections And Quick Connectors

G10047594

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip complete holder (1) for pressure lines from seat mechanism.

Installation note:

Replace faulty clips.

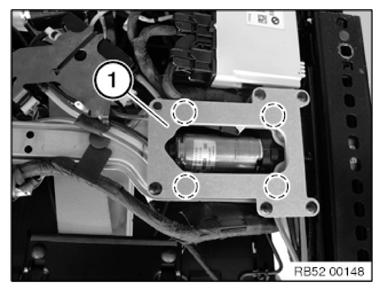

Fig 3: Identifying Holder And Clips

G10047595

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Partially remove belt-deflecting point in order to simplify removal of pneumatic pockets.

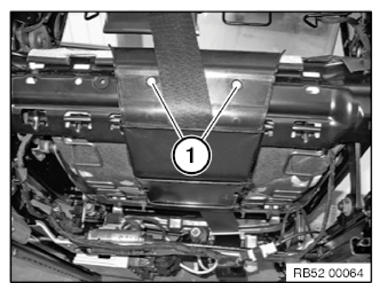

Fig 4: Identifying Screws

G10047596

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pneumatic pockets (1) with supports on left and right from flexmat.

Feed pneumatic pockets (1) through flexmat towards bottom.

Fig 5: Removing Pneumatic Pockets

G06213172

Courtesy of BMW OF NORTH AMERICA, INC.

Open quick connectors (1) and remove pressure line.

Thread out hose through backrest frame.

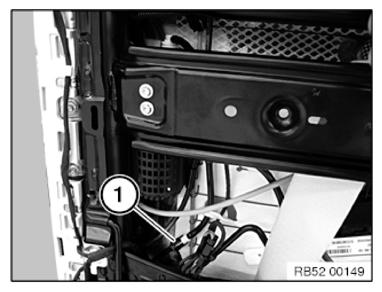

Fig 6: Identifying Quick Connectors

G10047598

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
