52 17 120 Replacing left active seat pump

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest

Release screws (1).

Unlock quick-release coupling (2) and disconnect.

Disconnect plug connection (3).

Lift out pump for pressure distributor.

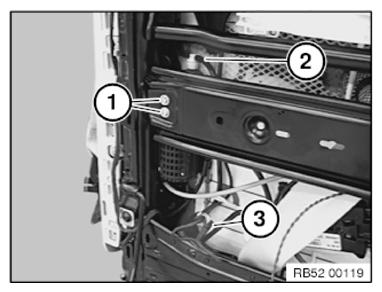

Fig 1: Identifying Plug Connection, Quick-Release Coupling And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK .
