51 24 146 Removing and installing/replacing button for rear lid actuation

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for rear lid. See 51 49 000 REMOVING AND INSTALLING OR REPLACING TRIM FOR REAR LID .

Version with reversing camera:

Remove REVERSING CAMERA

Release and disconnect plug connection (1) at microswitch.

Slacken screws (2) until circlip (3) can be twisted.

Tightening torque 51 24 16AZ .

Turn circlip (3) and remove.

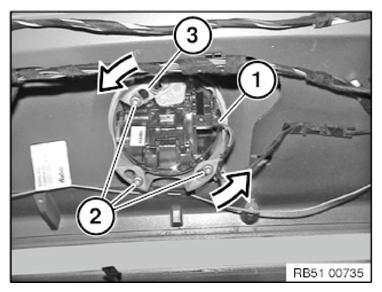

Fig 1: Disconnecting Plug Connection At Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove button (1) from tailgate (2) in direction of arrow.

Fig 2: Removing Button From Tail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform function check with tailgate open.

Replacement:

Install BMW badge. See 51 14 010 REMOVING AND INSTALLING/REPLACING REAR BMW BADGE .
