51 14 010 Removing and installing/replacing rear BMW badge
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
The notes on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail. See 51 00... NOTES ON COMPONENT BONDING ADHESIVE TAPE .

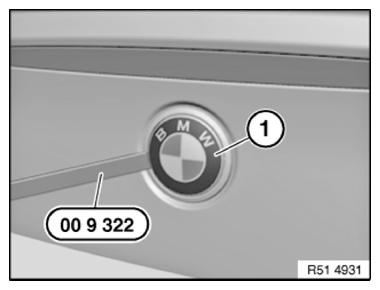

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .
Installation note:

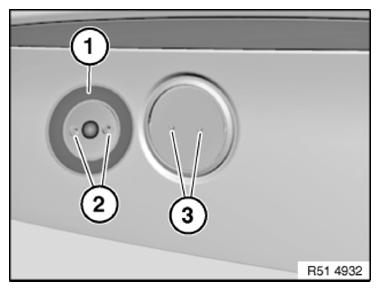

Pull liner* off adhesive tape (1).
Position plate over guides (2 and 3) and press down firmly.
* Liner is the protective film on a new badge.
