51 46 026 Removing and installing or replacing front air outlet trim grille

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT
Remove ARMREST FOR REAR SEAT BACKREST
REMOVE BOTH COVERS FROM THE ROLLOVER BAR

Release screws (1) on backrest.

Tightening torque 52 24 7AZ .

The screws (2) need not be loosened.

Fold the backrest towards the front.

Fig 1: Identifying Screws On Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

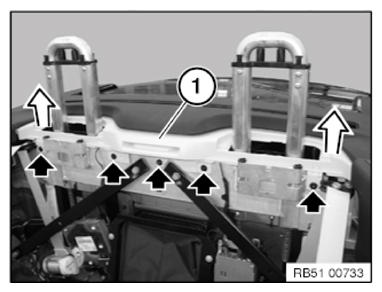

Release screws at marked points.

Remove the ornamental grille (1) towards the top.

Fig 2: Removing Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.
