54 62 010 Removing and installing/replacing cover on left or right rollover protection bar

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 213 409

IMPORTANT: Perform work carefully!
Retaining lugs must not be damaged!
The complete rollover protection bar must be replaced if the retaining lugs are damaged!

Necessary preliminary tasks:

Activate both ROLLOVER PROTECTION BARS .

Position special tool 2 213 409 as illustrated and unlock left and right retaining lugs (1).

Take off cover (1).

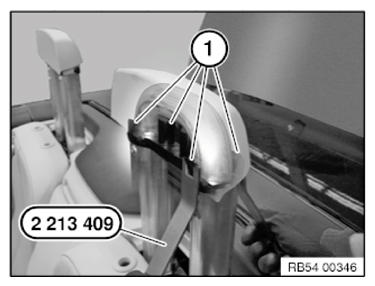

Fig 1: Positioning Special Tool 2 213 409

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining chambers (1) for rollover protection bar, right.

Retaining chambers (2) for rollover protection bar, left.

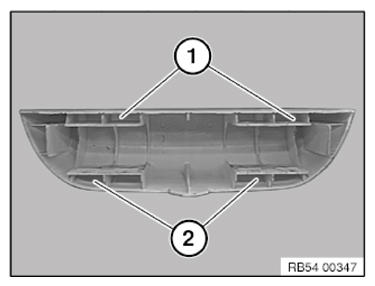

Fig 2: Identifying Retaining Chambers For Rollover Protection Bar (Right And Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace the rollover protection bar if retaining lugs are damaged.
