51 37 000 Removing and installing complete rear left or right power window regulator

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove inner weather strip. See 51 37 265 REMOVING AND INSTALLING/REPLACING INNER WINDOW CAVITY COVER STRIP FOR DOOR WINDOW, REAR LEFT OR RIGHT .

Release screws (1).

Tightening torque 51 37 3AZ .

Raise the power window regulator (2) slightly and detach cable clip (3).

Move side window to the uppermost end position.

Installation note:

Adjust cavity gap. See 51 37... ADJUSTING THE REAR LEFT AND RIGHT WINDOW CAVITY GAP .

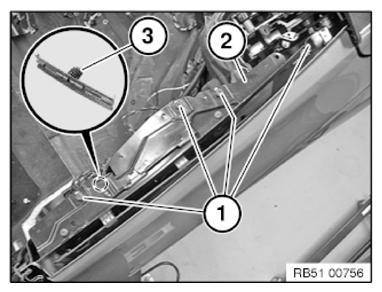

Fig 1: Identifying Power Window Regulator And Screws

G10046430

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) and slacken underlying screw (2).

Tightening torque 51 37 1AZ .

Feed out cable clip (3).

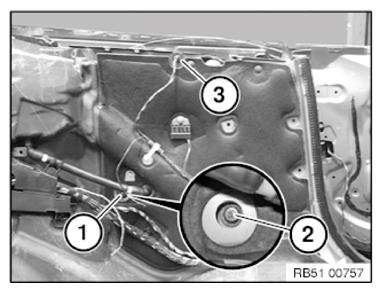

Fig 2: Identifying Cable Clip And Cover

G10046431

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out power window regulator (1) towards top slightly.

Lift out cable holder (2) from power window regulator (1).

Disconnect plug connection (3).

Remove power window regulator (1).

Installation note:

Run a function check.

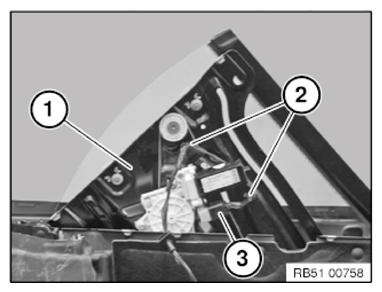

Fig 3: Identifying Power Window Regulator, Holder And Plug Connection

G10046432

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Adjust rear door window. See 51 37 154 ADJUSTING REAR LEFT OR RIGHT SIDE WINDOW .
