51 16 992 Disassembling and assembling lock barrel (lock barrel removed)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

If necessary, remove lock barrel. See 51 16 190 REMOVING AND INSTALLING/REPLACING LOCK CYLINDER IN CENTER ARMREST .

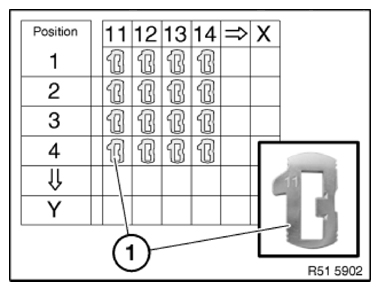

Sort supplied retainers (1) according to graphic.

(X) Embossed number on retainer (1)

(Y) Installation position in lock barrel

Fig 1: Identifying Retainers

G10046118

Courtesy of BMW OF NORTH AMERICA, INC.

Insert spring (1) into first position of lock barrel (2).

NOTE: Lock barrel version (2) differs according to vehicle.

Fig 2: Identifying Spring And Lock Barrel

G06180373

Courtesy of BMW OF NORTH AMERICA, INC.

Insert retainer (1) with lowest stamped number (X) in first position (Y) in lock barrel (2) so that it snaps into place audibly.

NOTE: Number of retainers (1) differs according to vehicle.

Fig 3: Identifying Retainer And Lock Barrel

G06180374

Courtesy of BMW OF NORTH AMERICA, INC.

Insert ignition key (1) in lock barrel (3) and check whether retainer (2) is flush with housing.

(A) OK

(B) not OK

Fig 4: Identifying Ignition Key And Lock Barrel

G06180375

Courtesy of BMW OF NORTH AMERICA, INC.

If retainer (2) is not OK, press retainer (2) out of lock barrel (3) with a suitable tool (1).

Repeat work operations with retainer (2) with next higher number (X) until correct retainer (2) has been found.

Carry out all further positions in lock barrel as described in the process above.

Fig 5: Removing Retainer

G06180376

Courtesy of BMW OF NORTH AMERICA, INC.
