51 16 368 Replacing right glove box with housing

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:

Modify glove box cover including damper. See 51 16 365 REMOVING AND INSTALLING/REPLACING GLOVE BOX COVER .

Release screws (2) of cover panel (1).

Tightening torque 51 16 15AZ .

Remove cover panel (1).

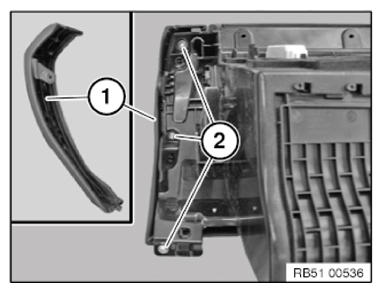

Fig 1: Identifying Screws Of Cover Panel

G10046210

Courtesy of BMW OF NORTH AMERICA, INC.

Remove GLOVE BOX LIGHT (1).

Unlock fuse carrier cover (2) and remove.

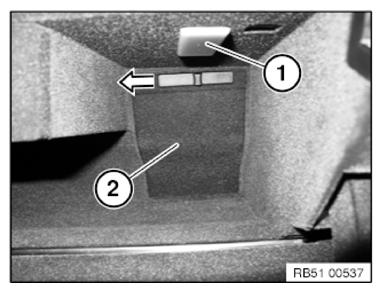

Fig 2: Removing Fuse Carrier Cover

G10046211

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out left and right protective caps (1) from storage compartment (2) using special tool 00 9 327 and remove.

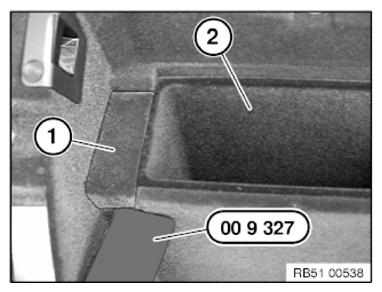

Fig 3: Identifying Special Tool 00 9 327

G10046212

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on storage compartment (2).

Tightening torque 51 16 16AZ .

Pull out storage compartment (2) toward the front and set aside.

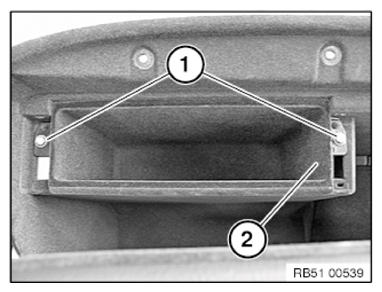

Fig 4: Identifying Storage Compartment And Screws

G10046213

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip left and right snap-in sockets (1) and slip out of glove box housing (2).

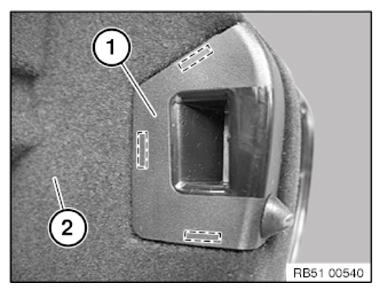

Fig 5: Identifying Snap Sockets And Glove Box Housing

G10046214
