51 16 365 Removing and installing/replacing glove box cover

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove right glove box with housing. See 51 16 366 REMOVING AND INSTALLING RIGHT GLOVE BOX WITH HOUSING .

Spread U clamp (2) of damper (4) until swivel arm (3) slips out.

NOTE: After turning by 90°, damper (4) of glove box housing (1) can be removed.

Fig 1: Removing U-Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3).

Tightening torque 51 16 15AZ .

If necessary, open glove box cover (1), disengage from clips (2) and remove towards front.

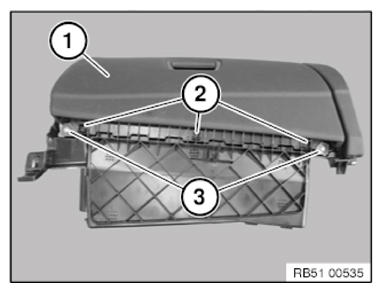

Fig 2: Identifying Glove Box Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
