51 16 172 Removing and installing/replacing center armrest storage compartment

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove center armrest cover. See 51 16 167 REMOVING AND INSTALLING (REPLACING) CENTER ARMREST COVER .

NOTE: Similar to graphic.

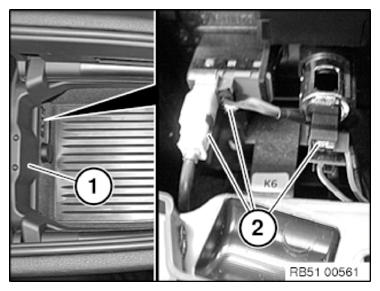

Unlock and disconnect all front plug connections (2) on center console storage compartment (1).

Fig 1: Identifying Plug Connections On Center Console Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

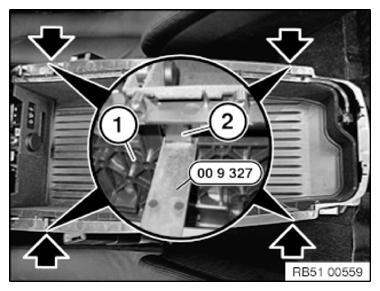

Unlock retaining tabs (2) all the way around with special tool 00 9 327 .

Fig 2: Locating Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Version with LED only - F12/F13:

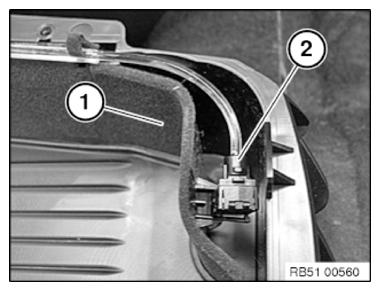

Disconnect plug connection (2) from LED.

Lift out center console storage compartment (1) from top.

Replacement

Modify charging socket cover
Modify front and rear insert mat
Modify floor cover
Version with LED only - F12/F13:
Modify light guide

Fig 3: Identifying Plug Connection And Center Console Storage Compartment
Courtesy of BMW OF NORTH AMERICA, INC.
