51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel. See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

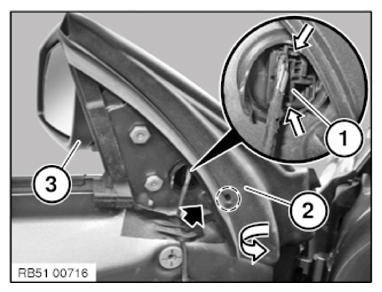

Release rubber window seal (2) in area of mirror triangle and fold forwards.

Installation note:

Use suitable phillips screwdriver to correctly position nipples of rubber window seal (2) over bore hole.

Unlock plug connection (1) for rear-view mirror (3) and disconnect.

Fig 1: Releasing Rubber Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.

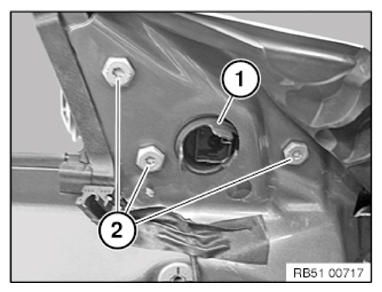

Unfasten screws (2).

Tightening torque 51 16 1AZ .

Remove rear-view mirror on front door with rubber seal (1) and set aside.

Installation note:

Correctly insert rubber seal (1) into recess of mirror mounting frame.

Fig 2: Identifying Rear-View Mirror Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

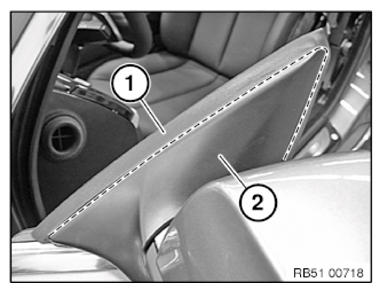

Installation note:

Correctly insert mirror base (2) into rubber window seal (1).

Replacement

Convert housing on exterior mirror. See 51 16 040 REMOVING AND INSTALLING/REPLACING HOUSING ON LEFT OR RIGHT EXTERIOR MIRROR .

Fig 3: Identifying Mirror Base Into Rubber Window Seal
Courtesy of BMW OF NORTH AMERICA, INC.
