51 72 000 Replacing edge protection for left or right front door
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks:
- Remove front door sill cover strip (inner). See 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
IMPORTANT:
Follow notes for fitting sealing. See 51 72... SEALING INSTALLATION .

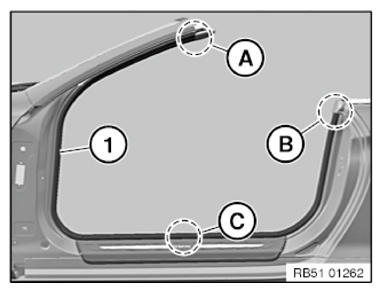

Completely pull off edge protection (1) from body.
Installation note:
Install edge protection (1) starting in area "A".
Edge protection (1) must be positioned correctly under the respective adjacent gaskets in areas "A" and "B".
Pull off mounting cord starting in area "C".
