51 17 101 Removing and installing/replacing left and right trim strip on cover for soft top compartment lid

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Removing center trim strip on cover for soft top compartment lid. See 51 17 100 REMOVING AND INSTALLING/REPLACING TRIM STRIP ON COVER FOR SOFT TOP COMPARTMENT LID CENTER .

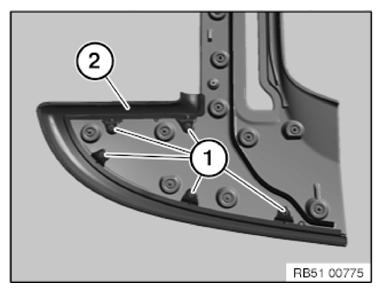

Slacken bolts (1) and remove trim strip (2).

Fig 1: Identifying Trim Strip And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

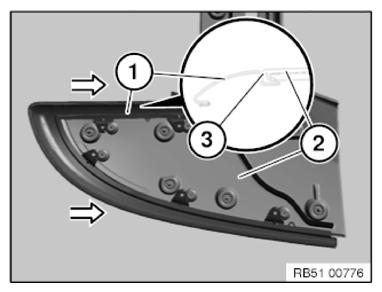

Trim strip (1) may not be fitted from above on cover for soft top compartment lid (2).

Here the sealing lip (3) is pressed out and gap dimensions may not be observed.

Insert trim strip (1) from the front onto cover for soft top compartment lid (2).

Fig 2: Installing Cover For Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

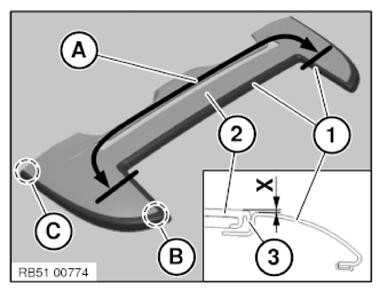

Ensure correct gap dimension (X).

Dimension (X):

0.5 ± 0.5 mm
1 ± 0.5 mm
0 ± 0.5 mm

Fig 3: Identifying Gap Dimension Trim Strip On Cover
Courtesy of BMW OF NORTH AMERICA, INC.

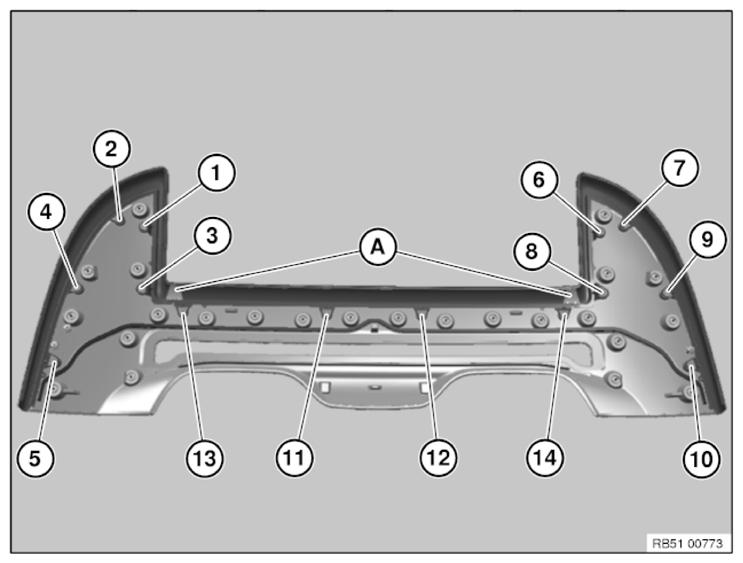

Fig 4: Identifying Trim Strip On Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Screwing sequence:

Tighten down screws (1-12).

Install adapter (A).

Tighten down screws (13 and 14).

Tightening torque 51 17 12AZ .
