51 17 100 Removing and installing/replacing trim strip on cover for soft top compartment lid center

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cover on soft top compartment lid. See 51 17 001 REMOVING (REPLACING) AND INSTALLING COVER ON SOFT TOP COMPARTMENT LID .

Release screws (1).

Release adapter (2) from trim strip (3) and remove trim strip (3).

Installation note:

Observe tightening sequence!

Ensure the same gap dimension of the trim strip (3) on right and left.

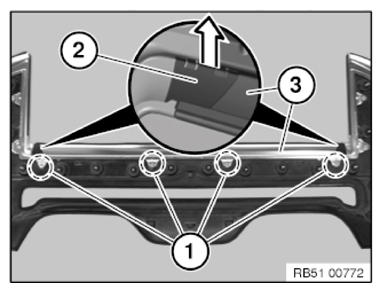

Fig 1: Releasing Adapter From Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Do not fit trim strip (1) from above on soft top compartment lid cover (2). Here the sealing lip (3) is pressed out and gap dimensions may not be observed.

Insert trim strip (1) from the front onto cover for soft top compartment lid (2).

Ensure correct gap dimension (X).

Dimension (X):

0.5 ± 0.5 mm
1 ± 0.5 mm
0 ± 0.5 mm

Fig 2: Inserting Trim Strip From Front Onto Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Screws Of Trim Strip On Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Screwing sequence:

Tighten down screws (1-12).

Install adapter (A).

Tighten down screws (13 and 14).

Tightening torque 51 17 12AZ .
