51 17 010 Removing and installing/replacing sealing on soft top compartment lid on front left or right
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove cover on soft top compartment lid. See 51 17 001 REMOVING (REPLACING) AND INSTALLING COVER ON SOFT TOP COMPARTMENT LID .

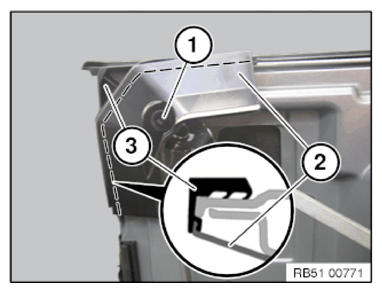

Release clip (1) and remove cover (2).
Remove seal (3).
Installation note:
Make sure cover (2) is correctly seated on seal (3).
