51 71 480 Removing and installing/replacing cross reinforcement (on rear axle)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INFORMATION
for raising the vehicle
Driving without cross reinforcement is not permitted!
Driving without cross reinforcement is not permitted!
Necessary preliminary tasks:
- REMOVE REINFORCEMENT PLATE
- RELEASE REAR SILENCER and lower slightly

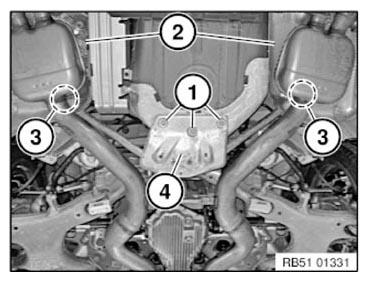

Release nuts of heat shield (2) and lower heat shield (2).
Unscrew nuts (3).
Tightening torque 51 61 14AZ .
Release screws (1).
Tightening torque 51 61 13AZ .
Remove cross reinforcement (4).
