51 31 011 Replace windscreen

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Attention!

The following notes form the basis for these repair instructions and must be adhered to at all times:

Removal is performed with Roll Out 2000. See 51 31... REMOVE WINDSCREEN WITH "ROLL OUT 2000" .

The following new parts/consumables are required .

Material Quantity
Windscreen 1
Cover, windscreen 1
Spacer buffer 5x5x20 mm 5
Small repair kit 1

Necessary preliminary work:

Depending on version:

Window removal:

Rubber frame (1) is secured at the side to the A-pillar (2) with double-sided adhesive tape.

F06/F13 M6 only  : rubber frame (1) is additionally secured in roof area with double-sided adhesive tape.

Release double-sided adhesive tape from body rubber frame (1).

Before installing the windscreen, remove adhesive residue from the body and clean adhesive area.

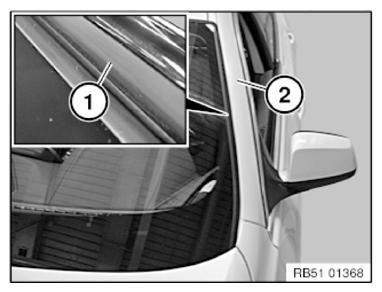

Fig 1: Identifying Rubber Frame And A-Pillar
G10046380Courtesy of BMW OF NORTH AMERICA, INC.

Tape off body in area of piercing point with fabric adhesive tape.

Push wire from Roll Out 2000 along line (1) through adhesive bead (2). See ROLL OUT 2000 .

For details on how to proceed, refer to: 51 31... REMOVE WINDSCREEN WITH "ROLL OUT 2000" .

Lift out windscreen with suction cup.

Fig 2: Pushing Wire Of Windscreen
G08511691Courtesy of BMW OF NORTH AMERICA, INC.

Window installation:

Completely remove any excess of removed spacer buffers and exactly keep the installation position to prevent windscreen breakage and wind noise.

Installation position of spacer buffers (2) is marked on the body side (1).

Position the spacer buffers (2) in the center of the embossed marks (1).

Buffer sizes to be used: 5x5x20 mm.

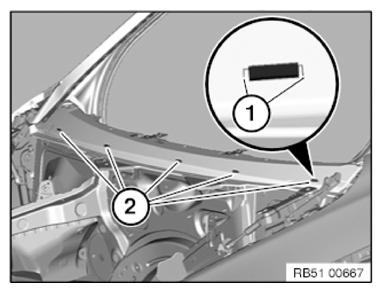

Fig 3: Identifying Spacer Buffers
G10046382Courtesy of BMW OF NORTH AMERICA, INC.

Attach new cover (1) to windscreen (2).

NOTE: Notch (3) of the cover (1) is in the center of the windscreen (2).

Clean adhesive area of cover (1) on body.

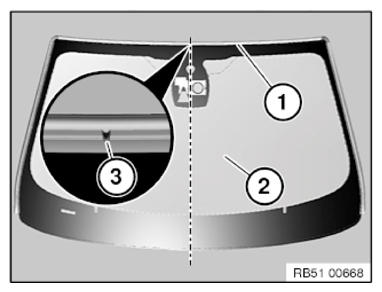

Fig 4: Identifying Windscreen Cover And Notch
G10046383Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace defective expanding foam tape (1).

Observe notes on component-bonding with adhesive tape. See 51 00... NOTES ON COMPONENT BONDING ADHESIVE TAPE .

Fig 5: Identifying Expanding Foam Tape
G09948368Courtesy of BMW OF NORTH AMERICA, INC.

Overview of windscreen bonding:

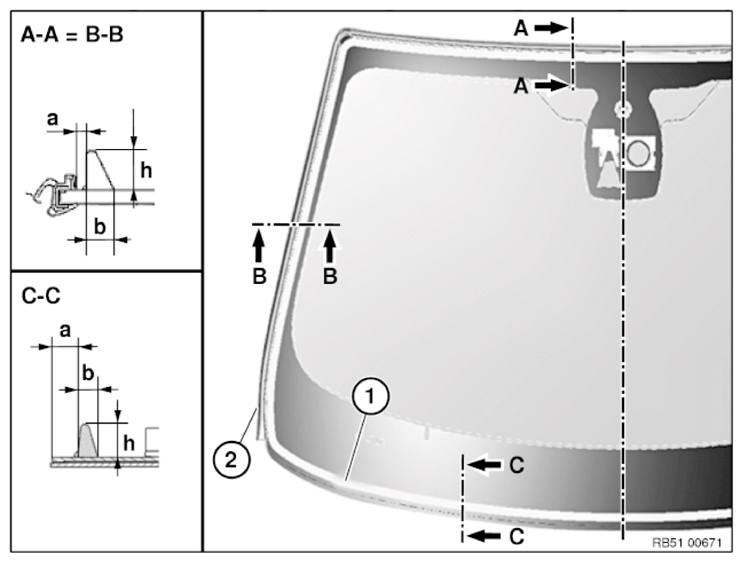

Fig 6: Overview Of Windscreen Bonding
G10046385Courtesy of BMW OF NORTH AMERICA, INC.
  1. Bead joint (approx. 300 mm from window edge)
  2. Windscreen cover
Cut A - A and B - B C - C
[mm] = Position adhesive bead 2 ±2 20 ±2
[mm] = Width adhesive bead 8 ±2 8 ±2
[mm] = Height adhesive bead 12 ±1 12 ±1

Perform the following steps carefully on the windscreen using siphon (51 3 010):

Fig 7: Positioning Special Tool (51 3 010) On Windscreen
G06885705Courtesy of BMW OF NORTH AMERICA, INC.

Preload on top of windscreen to prevent wind noise:

Windscreen (1) must be lower than roof outer skin (2). This is the only way to prevent wind noises.

Position special tool 51 0 010 in center of vehicle depending on dimension (A) and check underprotrusion of windscreen (1).

Windscreen underprotrusion (A):

F12 3, 3 mm
F06/F13 4, 3 mm
Fig 8: Checking Underprotrusion Of Windscreen
G05503858Courtesy of BMW OF NORTH AMERICA, INC.

X = Measurement stages 1... 4 mm

Pull off liner (1).

Press cover (2) on to A-pillar.

Make sure cover (2) is correctly fitted on A-pillar.

F06/F13 M6 only:  additionally bond cover (2) to roof.

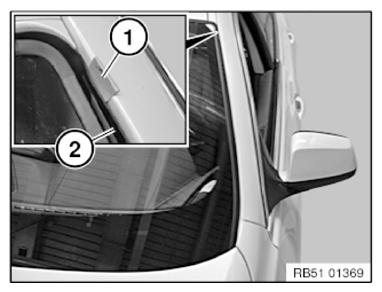

Fig 9: Identifying Cover And Liner
G10046388Courtesy of BMW OF NORTH AMERICA, INC.

Version with HUD only:

Check HUD functions again and if necessary adjust.

Only with camera-based driver support systems:

Carry out camera calibration via diagnosis system.

Under Service Functions menu:
