51 43 201 Removing and installing or replacing trim for roof pillar at front (A-pillar), left or right

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Follow safety informations for working on vehicles with airbag systems. See 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS and 72 SAFETY PRECAUTIONS AND GENERAL INFORMATION .

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

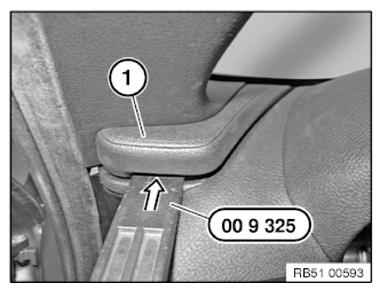

Lever out cover (1) applying slight pressure toward the front with special tool 00 9 325 and remove.

Fig 1: Identifying Special Tool 00 9 325

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

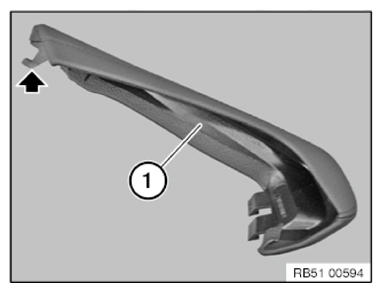

Attach front cover (1) correctly.

Fig 2: Attaching Front Cover

Courtesy of BMW OF NORTH AMERICA, INC.

F06 and F13 only:

Unclip and remove protective cap (1) using special tool 00 9 340 .

Release screw below it.

Tightening torque 51 43 1AZ .

Fig 3: Identifying Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic is similar.

Detach edge protection (2) in area of trim panel (1).

Unclip cover (1) using special tool 00 9 325 .

Feed out trim panel (1) from dashboard and remove.

Fig 4: Detaching Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) must not be missing or damaged.

Clip trim panel (2) with latch mechanism (3) into dashboard.

Position trim panel (2) on associated bore holes of clips (1) and clip into place.

Fig 5: Identifying Clip Trim Panel And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
