51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove top trim from tail panel. See 51 46 050 REMOVING AND INSTALLING/REPLACING TOP COVER ON TAIL PANEL .
Remove luggage compartment storage compartment. See 51 47... REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT STORAGE COMPARTMENT .

Release expanding rivet (1).

Lower the lower rear window trim panel (3).

Disconnect plug connection from luggage compartment lights (2).

Remove the lower rear window trim panel (3).

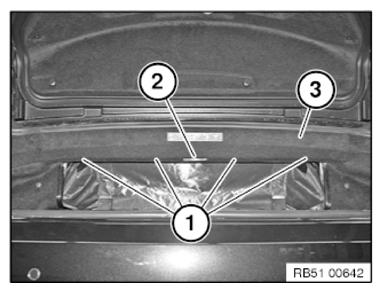

Fig 1: Identifying Expanding Rivet And Rear Window Trim Panel

G10046570

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivet (1).

Detach the emergency release button (2) from the Bowden cable.

Release screw (4) and remove lashing eye.

Remove luggage compartment wheel arch trim (3).

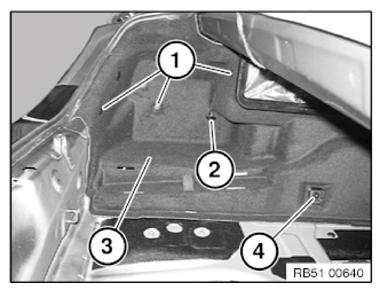

Fig 2: Identifying Expanding Rivet, Screw And Luggage Compartment Wheel Arch Trim

G10046571

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The luggage compartment wheel arch panel (1) must be seated correctly under the rubber seal (2) and rail (3).

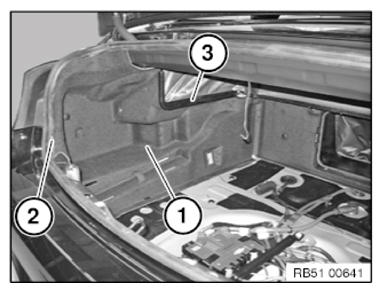

Fig 3: Identifying Luggage Compartment Wheel Arch Panel And Rubber Seal
