51 46 050 Removing and installing/replacing top cover on tail panel

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 2 040

Necessary preliminary work:

Remove luggage compartment storage compartment. See 51 47... REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT STORAGE COMPARTMENT .

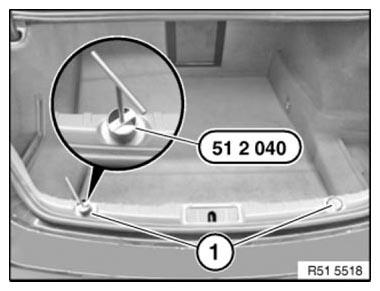

Release impact plates (1) with special tool 51 2 040 .

Fig 1: Releasing Impact Plates

Courtesy of BMW OF NORTH AMERICA, INC.

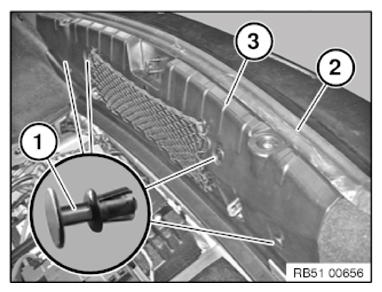

Release expanding rivet (1).

Feed out trim (2).

Installation note:

Ensure correct seat of rubber seal (2) on the cover (3).

Fig 2: Identifying Expanding Rivet And Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.
