51 47 140 Removing and installing/replacing panel for luggage compartment partition wall

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove luggage compartment wheel arch panel, left. See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
Remove right luggage compartment wheel arch panel. See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Version with ski bag:

Lift out and remove cover (1) with special tool 00 9 317 .

Fig 1: Identifying Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

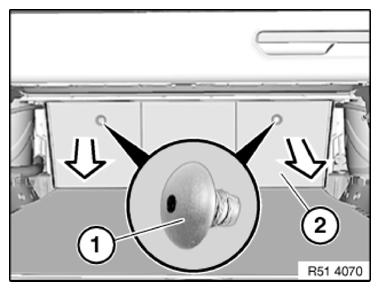

Lift out clip (1) and remove trim panel (2) in direction of arrow.

Installation note:

Replace clip (1), if applicable.

Fig 2: Removing Clip Of Luggage Compartment Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.
