51 47 066 Removing and installing/replacing illuminated rocker panel trim on front left or right entrance (outer)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Release rocker panel trim at front (watch out for wiring). See 51 47 065 REMOVING AND INSTALLING/REPLACING ROCKER PANEL TRIM ON FRONT LEFT OR RIGHT ENTRANCE (OUTER) .
- Remove front door sill cover strip. See 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
Detach edge protection (3) in area of entrance cable duct (4).
Pull off adhesive tape (2) for fixing cable (1) and slip cable (1) out of cable duct (4).
Installation note:
Resecure cable (1) with adhesive tape (2).
Close off entrance cable duct (4) again so it is watertight.

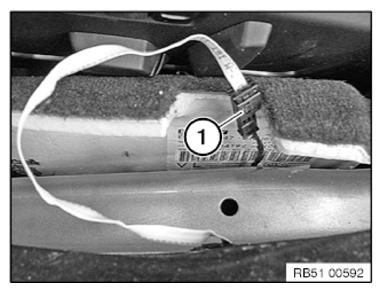

Unfasten plug connection (1) and disconnect.
Slip out cable and set down illuminated rocker panel trim.
Installation note:
Check lighting function.
