67 62 020 Removing and installing/replacing flat motor for rear left or right power window regulator

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear power window regulator. See 51 37 000 REMOVING AND INSTALLING COMPLETE REAR LEFT OR RIGHT POWER WINDOW REGULATOR .

Release screws (1) and detach flat motor (2) from power window regulator.

Tightening torque 67 62 1AZ .

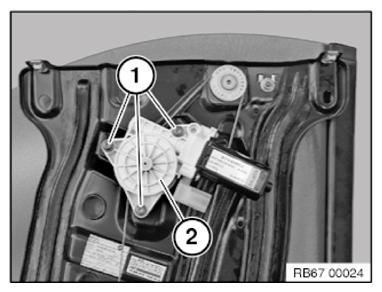

Fig 1: Identifying Flat Motor From Power Window Regulator And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For installation of flat motor (3) without tension, fit pinion (2) in guide (1)!

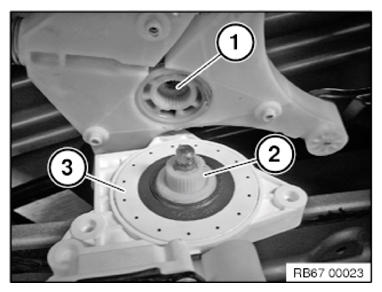

Fig 2: Identifying Flat Motor, Pinion And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES on initialization of power window regulator.
