54 62... Removing and installing/replacing left or right actuator

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove BACKREST .

NOTE: Prior to removing the actuators, both ROLLOVER BARS MUST BE EXTENDED .

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Left/Right Actuator Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove actuator (2).

Tightening torque 54 62 05AZ .

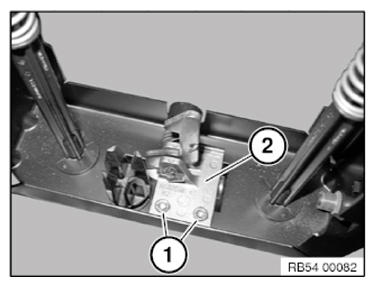

Fig 2: Identifying Actuator Screws

Courtesy of BMW OF NORTH AMERICA, INC.
