54 62 500 Trigger/retract the rollover bar
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
When a rollover bar is mechanically triggered, only one person may be present underneath the rollover bar.
When a rollover bar is mechanically triggered, only one person may be present underneath the rollover bar.
Triggering rollover bar mechanically:
A mechanical emergency release is performed via the luggage compartment.
Stow (open) soft top in soft top compartment.
Lift out sealing caps (1) from luggage compartment trim panel.
Using Torx key TX40, emergency unlock rollover protection by applying force against the pressure spring force (direction of arrow).
IMPORTANT:
Rollover bar must be fully extended. Check at arrow on rollover bar.
IMPORTANT:
When retracting, make sure rollover bar snaps into place on lower limit position. Slowly relieve load on rollover bar.
Necessary preliminary tasks:
- Remove air outlet ornamental grille. See 51 46 026 REMOVING AND INSTALLING OR REPLACING FRONT AIR OUTLET TRIM GRILLE .

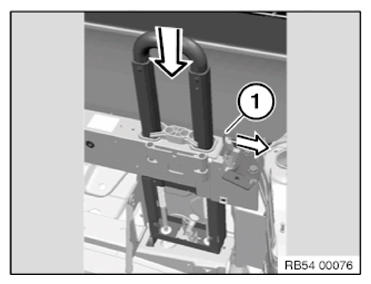

Hold release lever (1) outward against the acting spring force.
Press down rollover bar as far as it will go until the actuator locks.
NOTE:
Release lever (1) before the actuator locks. Rollover bar must snap audibly into place!
