54 34 130 Removing and installing/replacing headlining in soft top

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COWL PANEL TRIM

WARNING: Soft top becomes pressureless without a warning signal.
For all repair work, secure soft top with a suitable support tool against collapsing.
Ensure soft top is supported in the middle.
Ignition must remain switched off during the repair work.
Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

Undo screws (1) on headlining roof tip on left and right.

Tightening torque 54 34 14AZ .

Fig 1: Identifying Headlining Roof Tip Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull roof liner clamping profile (1) out of roof tip channel (2).

Installation note:

Remove all clamps from roof tip channel (2).

Pay attention to center markings on roof liner clamping profile (1) and roof tip channel (2).

Fig 2: Identifying Roofliner Clamping Profile And Roof Tip Channel

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure for bow, center and front:

IMPORTANT: Headlining screwed with washer. When dismantling, take care to avoid falling washers.

Release screws (1).

Tightening torque 54 34 15AZ .

Installation note:

Secure headlining with washers. Washers are located between headlining and bow.

Press headlining down when fastening screwed connection.

Fig 3: Identifying Headlining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Support soft top compartment lid in SERVICE POSITION .

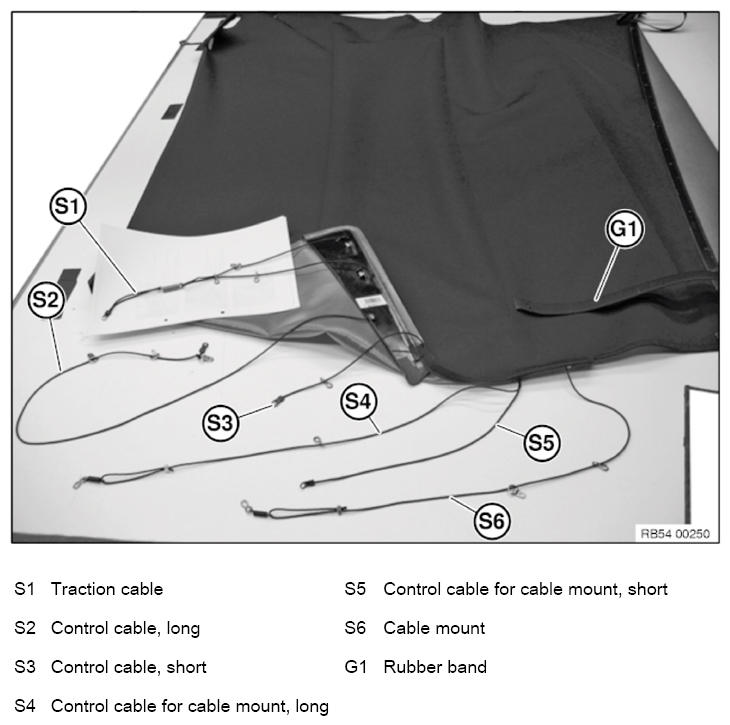

Overview of tension cables:

Fig 4: Overview Of Tension Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe OVERVIEW OF TENSION CABLE ROUTING .

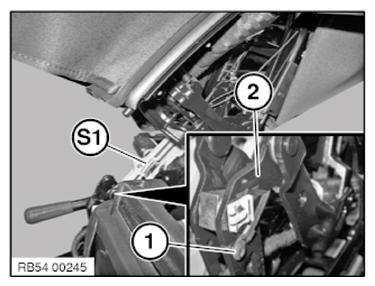

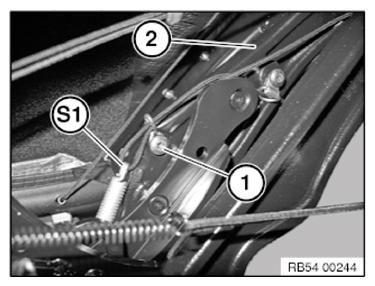

Unscrew screw (1) from traction cable (S1) on soft top frame main bearing (2).

Tightening torque 54 34 17AZ .

Fig 5: Identifying Traction Cable, Soft Top Frame Main Bearing, Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw (1) from traction cable (S1) on soft top frame main pillar (2).

Tightening torque 54 34 18AZ .

Installation note:

Screw guide lug of traction cable (S1) to be aligned with soft top frame main pillar (2).

Fig 6: Identifying Traction Cable, Guide Lug, Soft Top Frame Main Pillar, Screw (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying Traction Cable, Guide Lug, Soft Top Frame Main Pillar, Screw (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

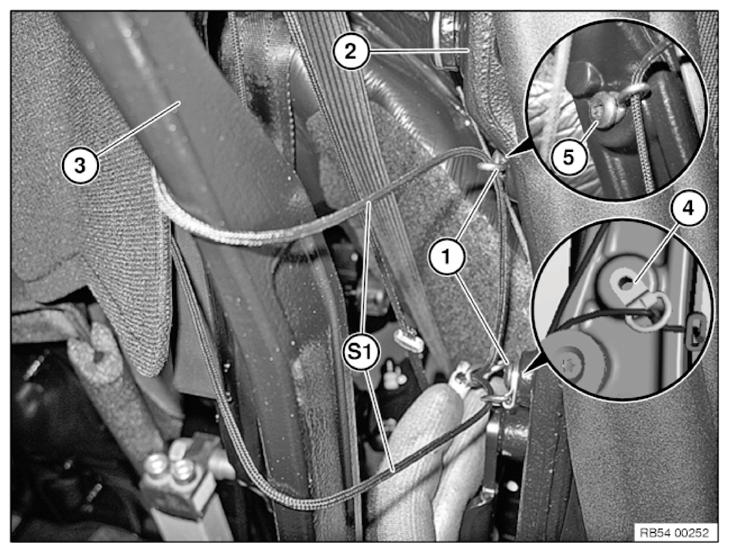

Undo screws (1) of traction cable (S1) on soft top frame main pillar at top and bottom (2).

Tightening torque 54 34 18AZ .

Installation note:

Route traction cable (S1) along soft top frame main pillar (2).

Screw guide lug (4) of traction cable (S1) downwards in 45° position.

Screw guide lug (5) of traction cable (S2) in horizontal position.

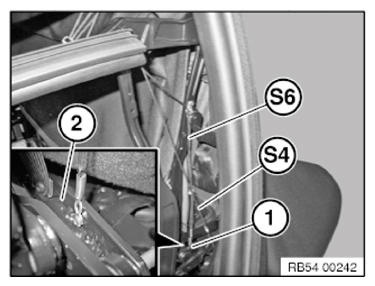

Unscrew screw (1) from cable mount (S6) on soft top frame main strut (2).

Tightening torque 54 34 19AZ .

Installation note:

Secure screw (1) with Loctite.

Cable mount (S6) must run behind control cable for cable mount, long (S4).

Fig 8: Identifying Soft Top Frame Main Strut, Control Cable Screw, Cable Mount

Courtesy of BMW OF NORTH AMERICA, INC.

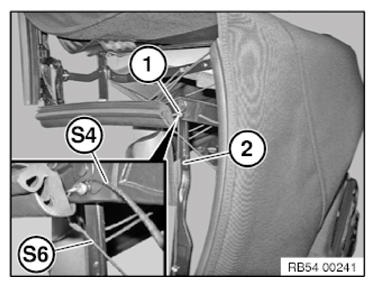

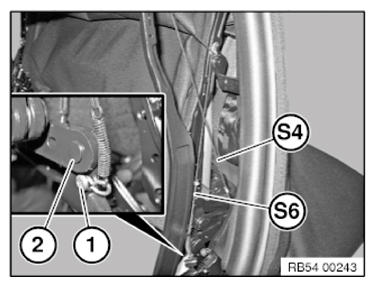

Unscrew screw (1) of control cable for cable mount, long (S4) on soft top frame main strut (2).

Tightening torque 54 34 20AZ .

Installation note:

Control cable for cable mount, long (S4) must run in front of cable mount (S6).

Fig 9: Identifying Front Cable Mount, Control Cable Screw, Soft Top Frame Main Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw (1) of control cable for cable mount, long (S4) on soft top frame roof strut (2).

Tightening torque 54 34 20AZ .

Installation note:

Route control cable for cable mount (S4) under cable mount (S6).

Fig 10: Identifying Soft Top Frame Roof Strut, Cable Mount, Control Cable Screw

Courtesy of BMW OF NORTH AMERICA, INC.

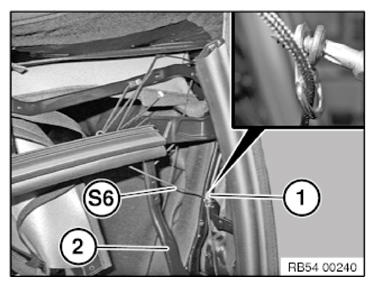

Unscrew screw (1) from guide lug of cable mount (S6) on soft top frame top tensioning rod (2).

Tightening torque 54 34 19AZ .

Fig 11: Identifying Guide Lug Screw, Cable Mount, Soft Top Frame Top Tensioning Rod

Courtesy of BMW OF NORTH AMERICA, INC.

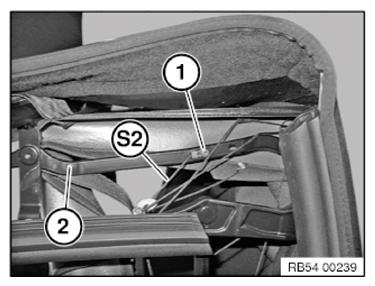

Undo screw (1) from mounting for control cable, long, (S2) on top strut of outer soft top frame (2).

Tightening torque 54 34 21AZ .

Fig 12: Identifying Control Cable Mounting, Outer Soft Top Frame, Screw

Courtesy of BMW OF NORTH AMERICA, INC.

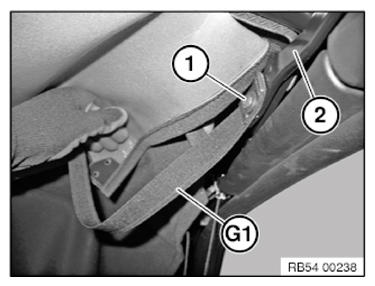

Unscrew screw (1) from rubber band (G1) on soft top frame strut (2).

Tightening torque 54 34 22AZ .

Fig 13: Identifying Rubber Band (G1), Soft Top Frame Strut, Screw (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Identifying Rubber Band (G1), Soft Top Frame Strut, Screw (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

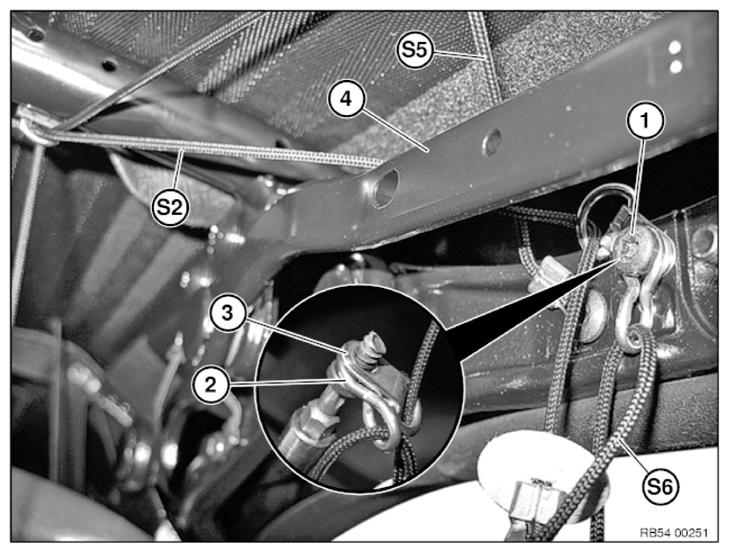

Undo screw (1) from guide lug (2) of cable mount (S6) and guide lug (3) of control cable, long (S2) on top strut of soft top frame.

Tightening torque 54 34 23AZ .

Installation note:

Observe correct sequence when screwing guide lugs on top strut of soft top frame (from top strut of soft top frame):

Guide lug (3) of control cable, long (S2).
Guide lug (2) of cable mount (S6)

Control cable, long (S2) must run between top strut of soft top frame (4) and control cable for cable mount (S5).

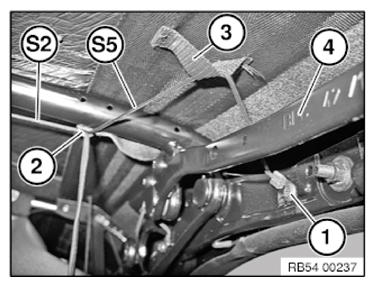

Undo screw (1) from control cable for cable mount, short (S5) on top strut of soft top frame.

Tightening torque 54 34 24AZ .

Feed control cable for cable mount, short (S5) through tab of tensioning strap (3) and outer guide lug (2) of control cable, long (S2).

Installation note:

Control cable for cable mount, short (S5) must run between top strut of soft top frame and guide lug of top strut of soft top frame (4).

Fig 15: Identifying Cable Mount, Control Cable, Guide Lug, Screw

Courtesy of BMW OF NORTH AMERICA, INC.

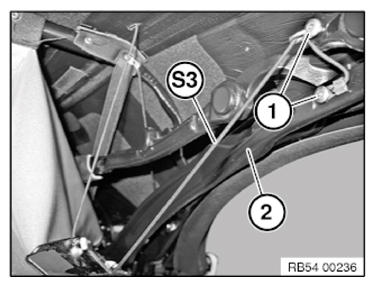

Unscrew screws (1) from control cable, short (S3) on soft top frame main pillar (2).

Tightening torque 54 34 25AZ .

Fig 16: Identifying Control Cable Screws And Soft Top Frame Main Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

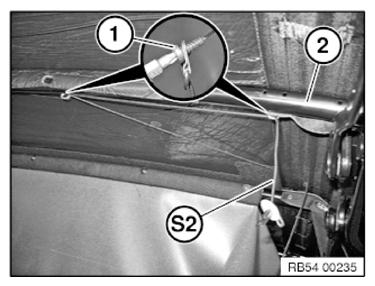

Undo screws (1) from control cable, long (S2) on bow in center (2).

Tightening torque 54 34 26AZ .

Installation note:

Straight sides of guide lugs for control cable, long (S2) must touch bow (2).

Fig 17: Identifying Long Control Cable, Screws And Bow Middle

Courtesy of BMW OF NORTH AMERICA, INC.

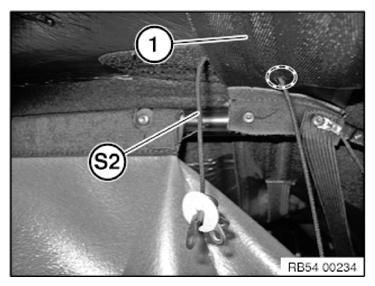

Pull entire control cable, long (S2) through slot in tensioning strap (1).

Fig 18: Identifying Long Control Cable And Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Work step for rear bow:

IMPORTANT: Headlining screwed with washers. When dismantling, take care to avoid falling washers.

Release screws (1).

Tightening torque 54 34 15AZ .

Installation note:

Secure headlining with washers. Washers are located between headlining and bow.

Press headlining down when fastening screwed connection.

Fig 19: Identifying Headlining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out welt of headlining (1) from soft top frame.

Installation note:

Remove all clamps from soft top frame.

Ensure that clamps on headlining section are properly secured.

Fit headlining at sides first, then at top of soft top frame.

Carefully hit headlining in soft top frame.

Fig 20: Pulling Out Welt Of Headlining From Soft Top Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Remove headlining from vehicle.

Installation note:

Check new headlining for damage before installation.
