54 34... Tension wire laying overview
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

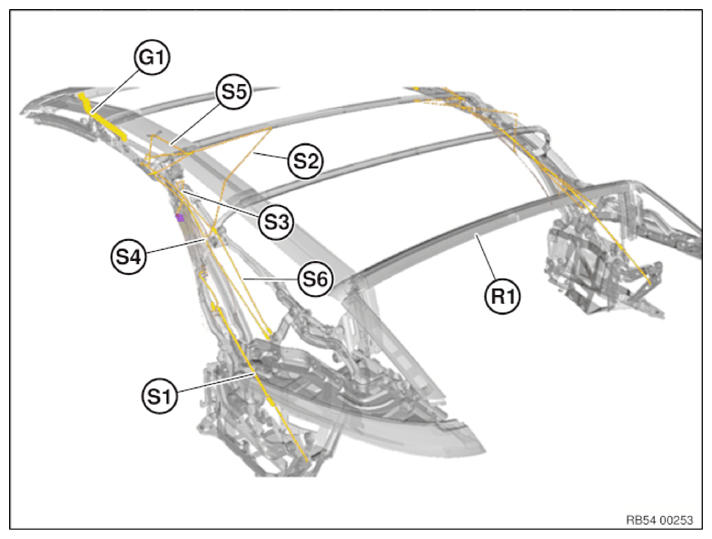

The following table provides an overview of the installed tension cables on the headlining.
- Yellow: Actual shown cable
- Start/end point
- Crossing cables
| R1 | Soft top frame |
| G1 | Rubber band |
| S1 | Traction cable |
| S2 | Control cable, long |
| S3 | Control cable, short |
| S4 | Control cable for cable mount, long |
| S5 | Control cable for cable mount, short |
| S6 | Cable mount |
