54 34 127 Removing and installing/replacing cowl panel trim (soft top fastener)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open soft top partially until work area is accessible

Release screws.

Installation note:

Insert screws with Loctite.

Observe tightening sequence (1-5).

Tightening torque 54 34 12AZ .

Fig 1: Cowl Panel Gasket Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adjust clamping strip (1) to the soft top latch lock striker (2).

Prepare a spacer or use a drill with a corresponding diameter.

A. = 9 mm

Fig 2: Identifying Clamping Strip To Soft Top Latch Lock Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover towards front.

Installation note:

Check for secure fit of the cover.

The cover may not rattle or squeak.

If applicable, remove metal clamps from cover.

Bend up metal clamps and insert back into the cover.

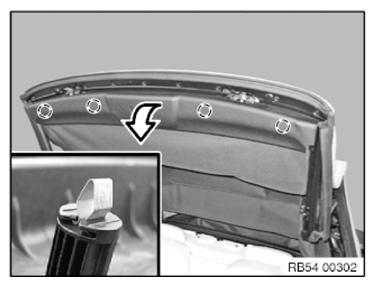

Fig 3: Removing Metal Clamps From Cover

Courtesy of BMW OF NORTH AMERICA, INC.
