33 10 024 Replacing both radial shaft seals for output shafts at rear axle differential

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove REAR AXLE FINAL DRIVE .

Pull out radial shaft seal with special tools 00 5 010 and 33 1 308 .

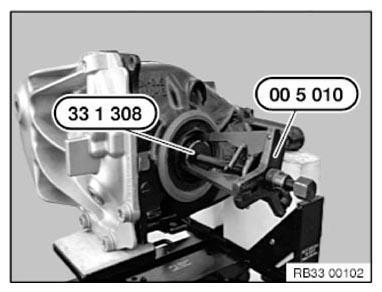

Fig 1: Pulling Radial Shaft Seal

G10045395

Courtesy of BMW OF NORTH AMERICA, INC.

Coat housing sheet metal flange and sealing lips of new radial shaft seal with approved OIL .

Drive new radial shaft seal to limit position with special tools 27 1 370 .

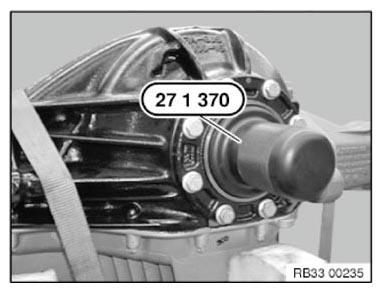

Fig 2: Identifying Special Tools (27 1 370)

G10045396

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The installation protective ring (1) serves to protect the sealing lips of the radial shaft seal (2) when installing the output shaft.

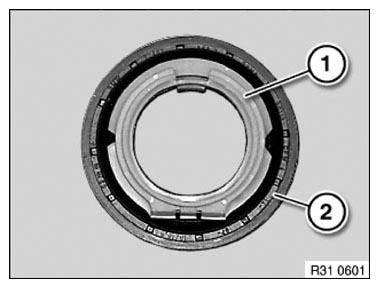

Fig 3: Identifying Radial Shaft Seal And Protective Ring

G10045397

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

IMPORTANT:

High installation forces indicate that the output shaft spline teeth are damaged or deformed!

Check splines and replace parts if damaged.

Check dust plate (1) for damage, replace if necessary.

Replace circlip (2).

Coat highlighted contact surface (3) of output shaft with approved OIL .

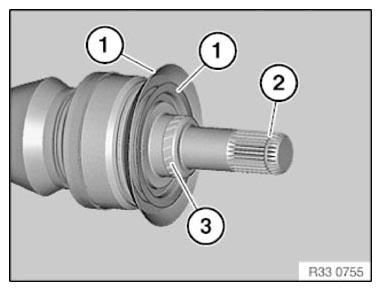

Fig 4: Identifying Dust Plate, Circlip And Output Shaft Contact Surface

G10045398

Courtesy of BMW OF NORTH AMERICA, INC.

Insert output shaft into rear axle final drive.

Pull out assembly protection ring at lug (1) until one of the two predetermined breaking points gives.

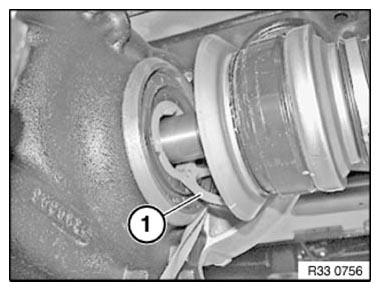

Fig 5: Identifying Assembly Protection Ring Lug

G10045399

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check TRANSMISSION OIL LEVEL , correct if necessary.
