00 11... Checking/topping up oil level in rear axle final drive
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning if exhaust system is touched!
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Use only approved OIL .
Failure to comply with this requirement will result in serious damage to the rear differential!

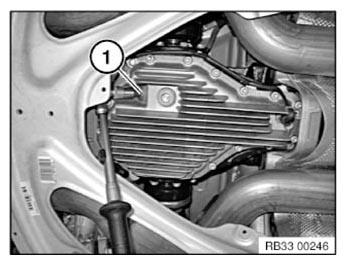

Open screw plug (1).
- Open and tighten screw plug (1) by using:
- Torque wrench 3/8"
- Reduction 1/2" to 3/8"
- 1/2" spanner socket AF 14
Tightening torque 33 11 2AZ .
Check oil level.
Top up final drive oil as required until it emerges from oil filler opening.
Installation note:
replace screw plug (1).
