33.... Overview of rear axle support with rubber mounts

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

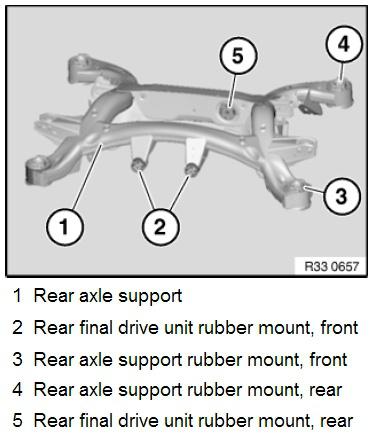

Fig 1: Overview Of Rear Axle Support With Rubber Mounts
G08577562Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions & general information: See LIFTING THE VEHICLE USING A VEHICLE HOIST , NOTES ON REPAIRING THREADS , and RAISING VEHICLE WITH TROLLEY JACK
