33 00... Notes on repairing threads

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads in the frame side member may be repaired with Helicoil thread inserts. Comply with the PROCEDURE described in the example.

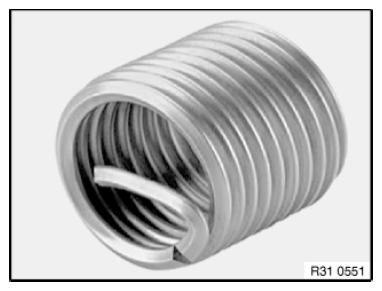

Fig 1: Identifying Damaged Threads

Courtesy of BMW OF NORTH AMERICA, INC.
