33 32 153 Removing and installing/replacing front compression strut
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without compression struts is not permitted!
Driving without compression struts is not permitted!
Necessary preliminary tasks:

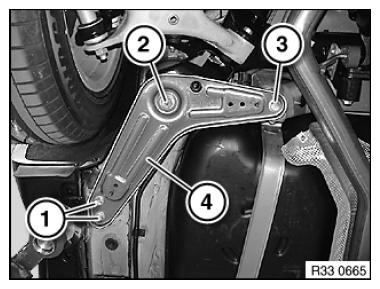

Release screws (1).
Tightening torque 33 33 2AZ .
Release screw (3).
Tightening torque 33 33 2AZ .
Release screw (2) and remove compression strut (4).
Secure rear axle carrier by inserting screw (2).
Installation:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
Tightening torque 33 33 1AZ .
