52 26 412 Replacing backrest cover for right rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove right BACKREST
• Remove BACKREST ACTUATOR TRIM AND LOCK TRIM
• Only on vehicles with 5 seats:

  Remove head restraint

Lever out welt in marked area.

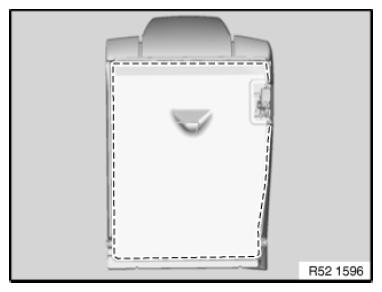

Fig 1: Identifying Welt Marked Area On Rear Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Release all clamps in marked area
• Remove cover from upholstery
• Remove remaining clamps from cover and upholstery

Replacement only:

• Pull all trim wires out of cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets

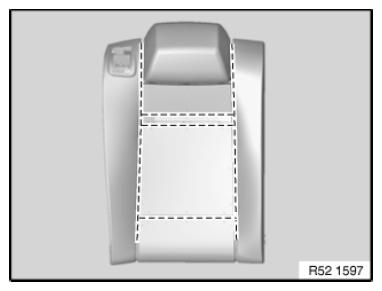

  Fig 2: Identifying Welt Marked Area On Front Backrest

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Backrest cover

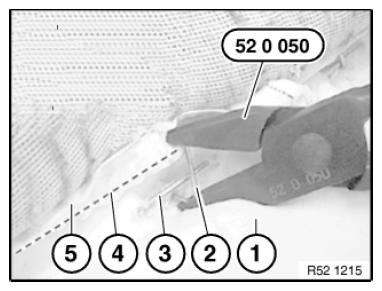

   Fig 3: Bending Clamp End Using Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.
