52 17 054 Removing and installing/replacing adjusting unit for backrest width adjustment on left or right front seat

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT
Remove BOTH REAR PANELS on front seat backrest
Remove INNER COVER on front seat
Remove BACKREST COVER for front seat

Release cable tie (1).

Installation:

Lay cables (3) without kinks.

Disconnect plug connection (2) on drive.

Fig 1: Identifying Plug Connection, Cables And Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1) on left and right and remove adjusting elements (3).

Release rivets (2) for drive.

Remove complete adjusting unit.

NOTE: Adjusting element (3), cables and drive form a single unit and can only be replaced completely.

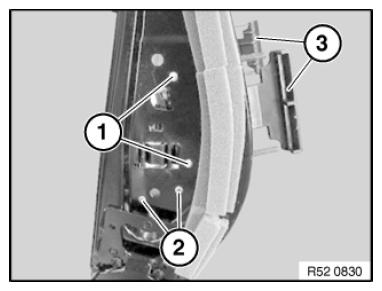

Fig 2: Identifying Drive Rivets And Adjusting Elements

Courtesy of BMW OF NORTH AMERICA, INC.
