52 17 405 Replacing backrest cover for left or right front seat (comfort)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove FRONT SEAT
Remove BOTH REAR PANELS on front seat backrest
Remove INNER COVER on front seat

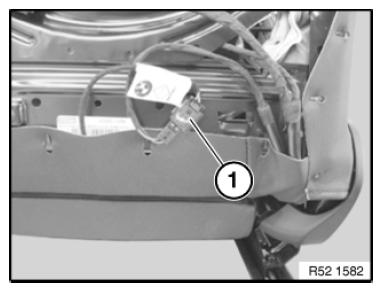

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

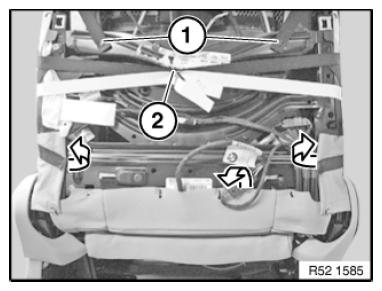

Disengage clamping bands (1).

Loosen retainers (2).

Installation:

52 0 050 Bend new retainers closed with pliers.

Detach backrest cover at bottom from backrest frame.

Fig 2: Disconnecting Backrest Cover At Bottom From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

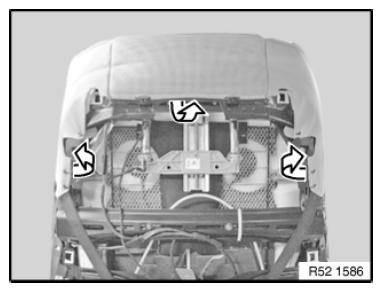

Detach backrest cover at top from backrest frame.

Fig 3: Disconnecting Backrest Cover At Top From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

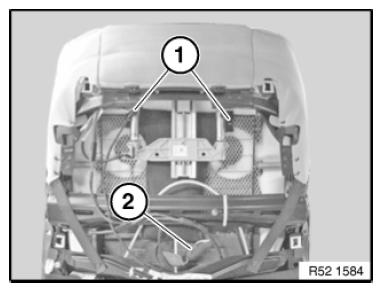

For A/C optional extra only:

Loosen retainers (1).

Installation:

Bend new retainers closed with pliers 52 0 050 .

Unlock and disconnect plug connection (2).

Fig 4: Identifying Plug Connection And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

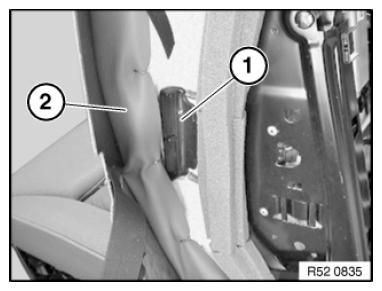

Remove backrest cover (2) complete with padding towards front.

Installation:

Adjusting unit (1) must be secured on left and right in opening of padding.

Fig 5: Identifying Backrest Cover And Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

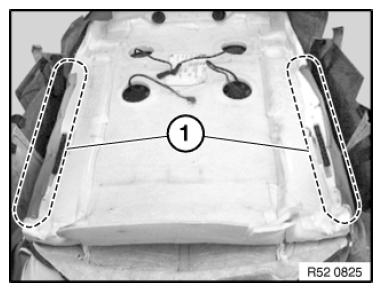

Detach all retainers in areas (1).

Fig 6: Identifying Cover Retainers In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers.

Installation:

52 0 050 Bend new retainers closed with pliers.

Remove backrest cover (1) from padding.

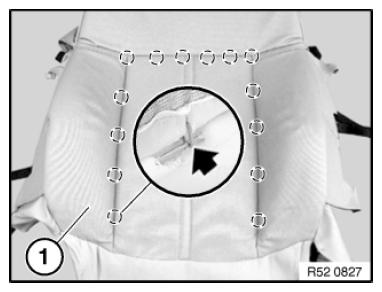

Remove all remnants of clips from backrest cover (1) and padding.

Fig 7: Locating Backrest Cover Clip Remnants

Courtesy of BMW OF NORTH AMERICA, INC.

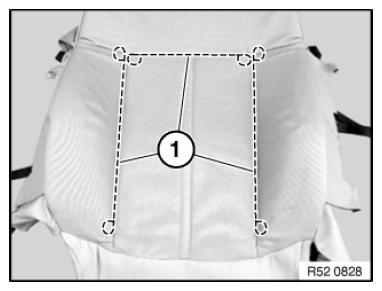

Pull trim wires (1) out of backrest cover.

Installation:

Push trim threads (1) into new backrest cover.

If necessary, cut into new component.

Fig 8: Identifying Backrest Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

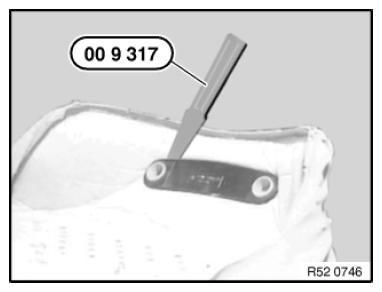

Lever out locking strip of head restraint guide with plastic wedge 00 9 317 .

Installation:

Mount straight front face of head restraint guide towards front.

Fig 9: Removing Head Restraint Guide Locking Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
