52 17 205 Removing and installing/replacing both rear panels on left or right front seat backrest

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Rear panel upper section:

Grip between rear panel and backrest cover on tunnel side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull upper rear panel up out of lower guides.

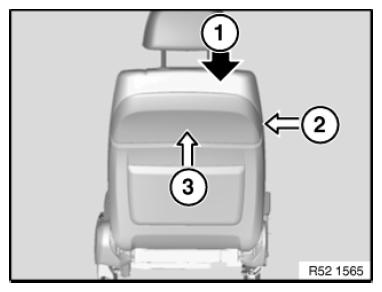

Fig 1: Pulling Rear Panel From Lower Guides
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Retainer
Guide
Upper rear panel

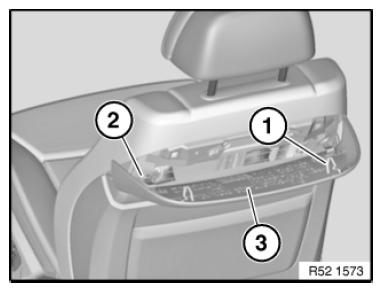

Fig 2: Identifying Upper Rear Panel, Retainer And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Rear panel trim lower section:

Grip between rear panel and backrest cover on tunnel side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull lower rear panel up out of lower guides

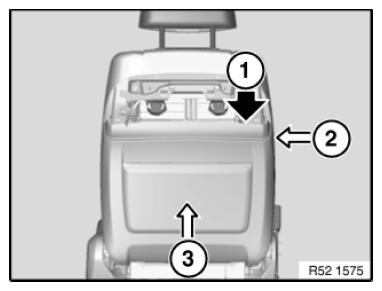

Fig 3: Removing Rear Panel Trim Lower Section
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).

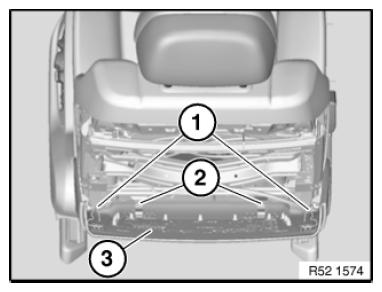

Fig 4: Identifying Lower Rear Panel, Guide And Springs

Courtesy of BMW OF NORTH AMERICA, INC.
