52 17 028 Removing and installing/replacing pump for pressure distributor

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANELS
Partially remove BACKREST COVER

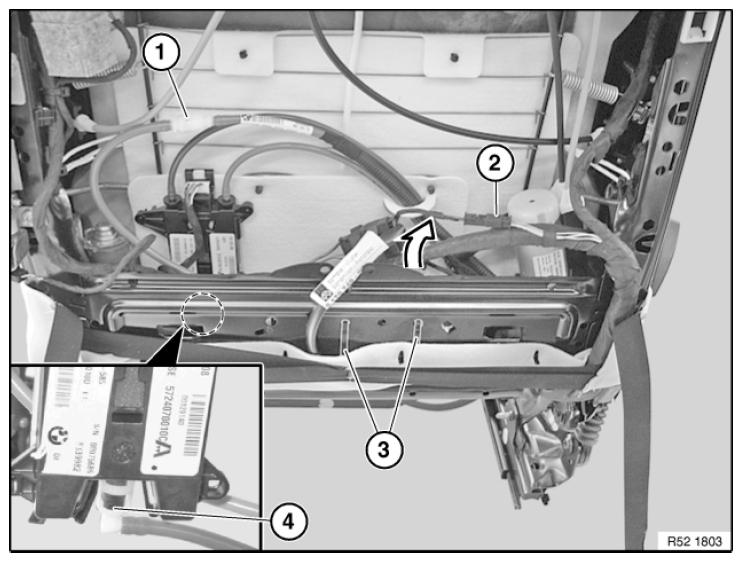

Fig 1: Disconnecting Pressure Distributor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-connect coupling (1) and disconnect.

Unfasten plug connection (2) and disconnect.

Cut open cable tie (3).

Installation:

Replace faulty cable ties.

Unlock quick-connect coupling (4) and disconnect.

Lift out pump for pressure distributor.

NOTE: Check function.
