52 17 020 Removing and installing/replacing seat frame on left or right front seat (comfort)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT
Remove SEAT COVER
Remove BACKREST FRAME on front seat
If necessary, remove pressure distributor for ACTIVE PASSENGER SEAT or ACTIVE DRIVER'S SEAT .

Remove wiring harness (1) from seat frame (2).

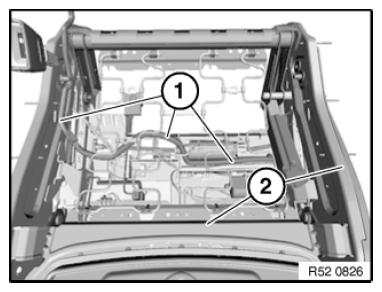

Fig 1: Identifying Seat Frame And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1) on left and right, remove fastening strips (2) on left and right.

Release screws (3).

Tightening torque 52 10 6AZ .

Remove seat frame.

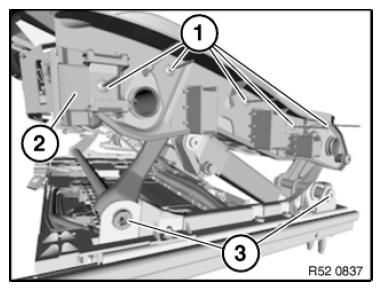

Fig 2: Identifying Fastening Strips, Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
